Immersion Cooling Suite B24D
Immersion Cooling Suite B24D
Sale price$12,900.00
Regular price (/)
Designed for independent deployment
- One B24D with one dry cooler, Supports up to 24 Antminers or 30 Whatsminers
- All-in-one design with built-in PDUs, network switches, sensors, and controllers
- High density and space saving
Single circulation and easier deployment
- Single-loop circulation
- Integrates smart PDUs and networking
- Integrates circulation pumps and piping
- Deployment is complete with only the installation of tubing and wires
Ultimate cooling capacity
- Specially designed for high-heat areas.
- Up to 120kW cooling capacity to gain overclocked hashrate
Automatic adjustment
- Built-in EC motors automatically adjust the fan speed according to the ambient temperature change, to achieve dynamic energy saving
Remote management
- Control the tank temperature, remote restart, etc. through the FOG HASHING SAAS platform
B24D TANK
Technical Specifications
Qty of B24 Tanks
1
Outer Size
2486mm*746mm*530mm
Input Voltage
3-phase 350-480V 50/60Hz
Output Voltage
Single-phase 200-277V 50/60Hz
Cooling Capacity
120kW@35°C
Ambient Temp
-25°C ~ 55°C
G.W
509kg
Coolant Volume
800L
Max Inlet/Outlet Temp
45/65°C
Max Power Load
9kW
Network
100Mbps Ethernet switch
Pipe Diameter
DN65

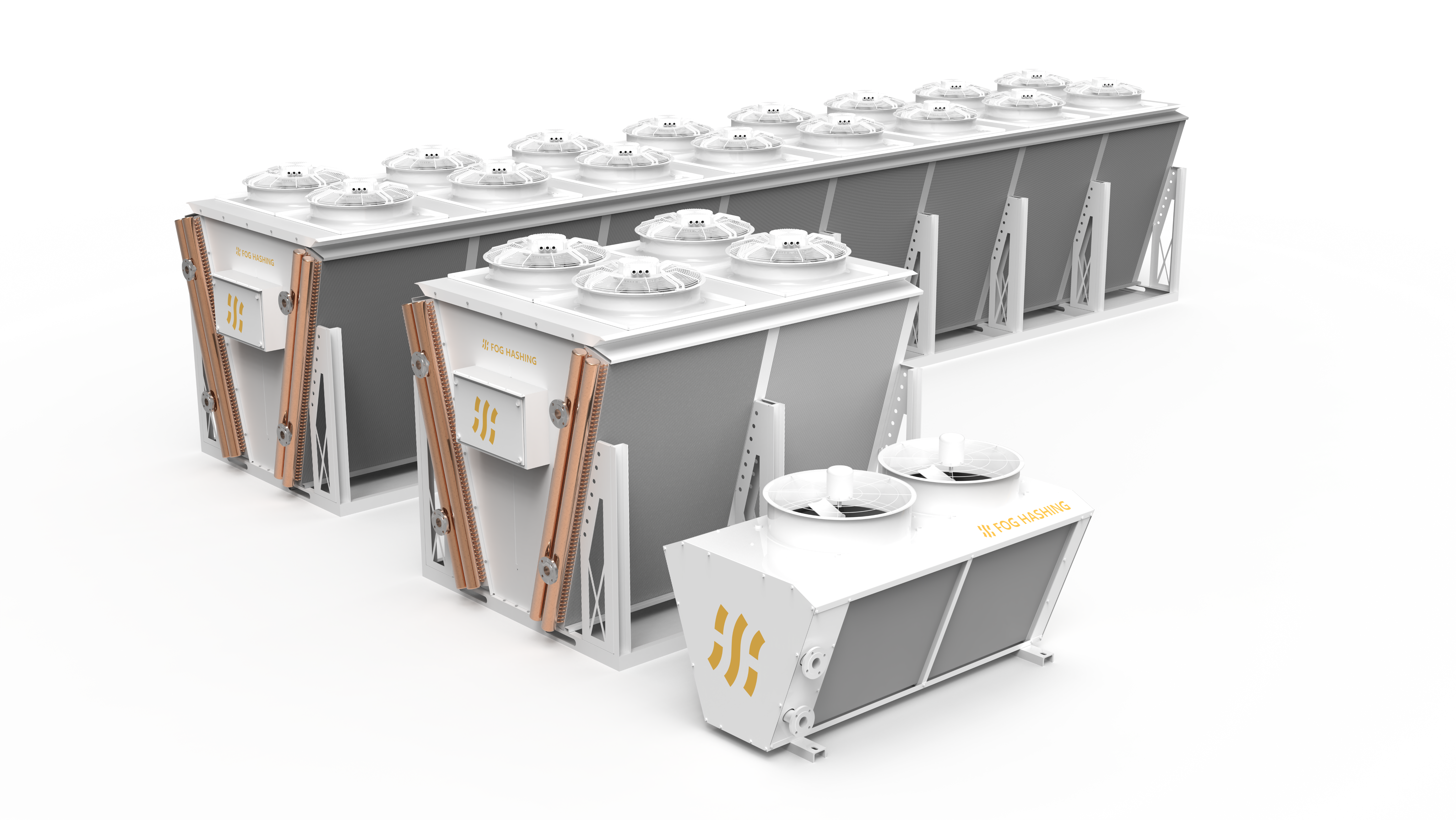

Dry Cooler
FHDC120
Dry Cooler (EC Fan)
Technical Specifications
Outer Size
2186*1874*2100
G.W.
769kg
Input Voltage
3-phase 350-480V 50/60Hz
Cooling Capacity
120kW@35°C
Max Power Load
4kW
Air Volume(m³/h）
38299
Noise
65dB(A) (@25°C,16m)
